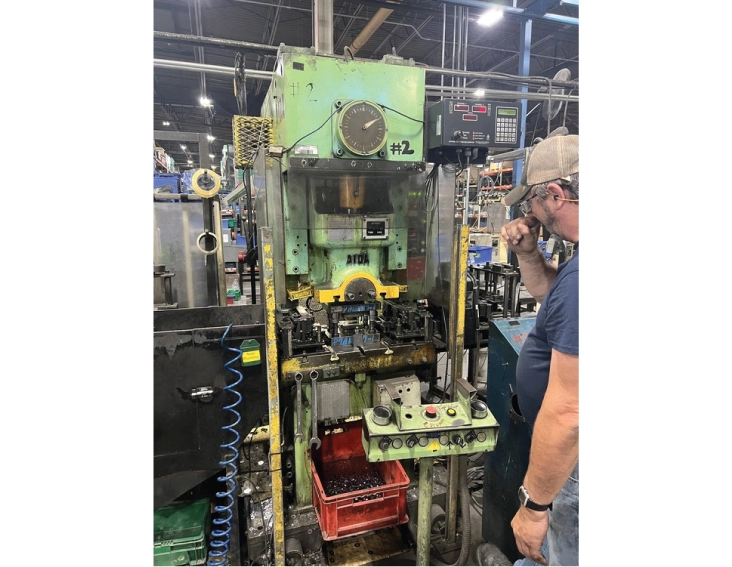

(1) Used 39 Ton Aida Model NC1-35(1) Single Point Gap Frame Press
OBI / Gap Frame Press
(1) Used 39 Ton Aida Model NC1-35(1) Single Point Gap Frame Press
| Ton | 39 T |
| Bed L-R | 28.7 in |
| Bed F-B | 13.1 in |
| Stroke | 1.96 in |
| Adjustment | 1.96 |
| Shut Height | 7.87 in |
| Speed (max) | 200 strokes/min. |
| OBI Single Double | Single Crank |
Capacity: 39 Ton
Blanking Capacity: 31 Ton
Stroke: 1.96"
Adjustment: 1.96"
Die Height: 7.87" (sdau over bolster)
Bed Area: 28.7" lr x 13.1" fb
Slide Area: 4.9" lr x 11.8" fb
Speed: 90 - 200 SPM
AIDA Press Control
LINK System 1100 Tonnage Monitor
Dual Palm Buttons
Hydraulic Overload
Inch / Single / Continuous Modes
